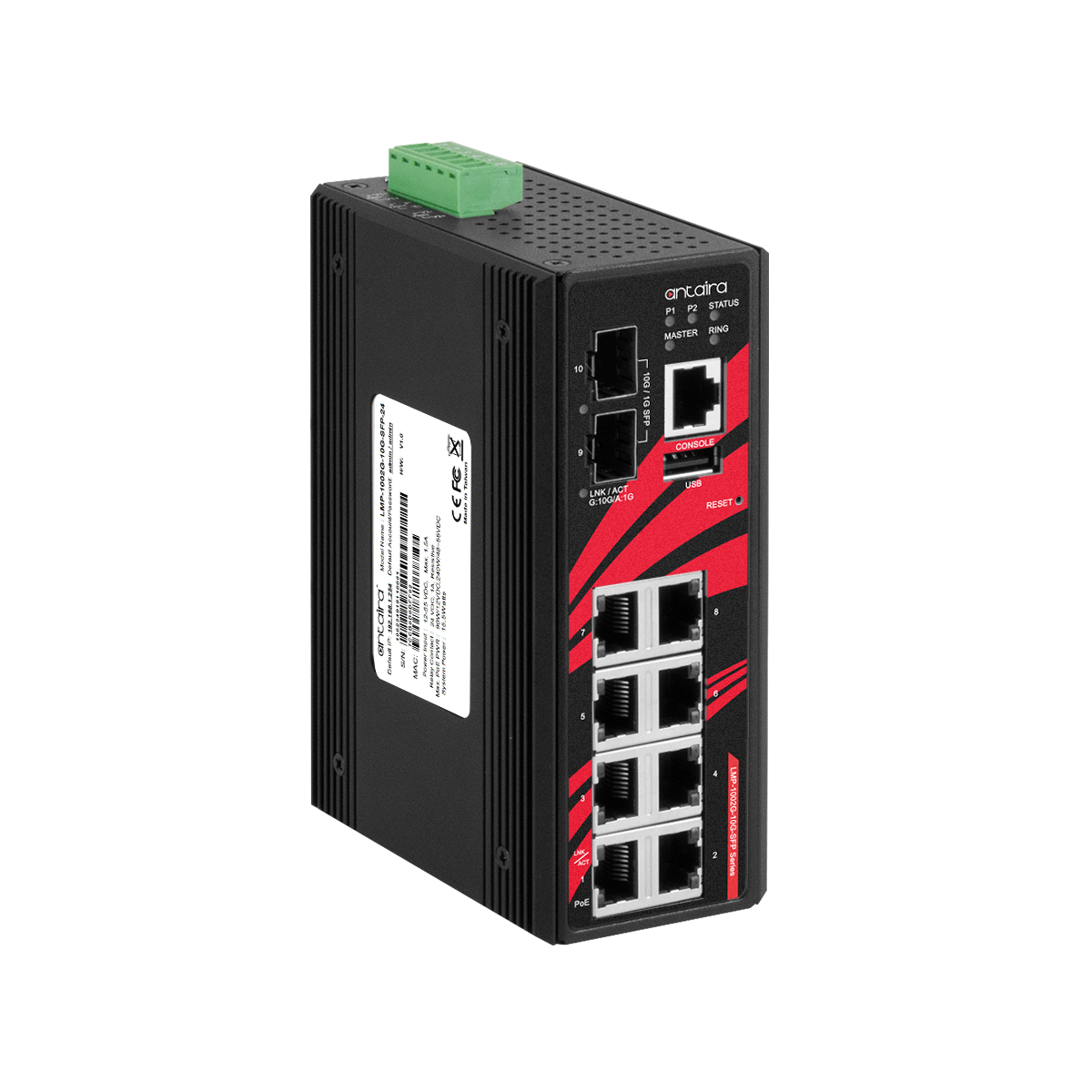

10-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx (30W/port) + 2*1000/10G SFP+ Slots; 12~55VDC Power InputSKU: LMP-1002G-10G-SFP-24
Stock: Low Stock. Please call for availability: 513-769-5533
Antaira’s LMP-1002G-10G-SFP-24 is a 10-port industrial Gigabit PoE+ light layer 3 managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port, and 2*1G/10G dual rate SFP+ slots for up to 10 Gigabit fiber connections. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
The LMP-1002G-10G-SFP-24 is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -40°C to 60°C that uniquely runs on an input voltage of 12-55 VDC. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.
